Twin-rotary head, 1000 × 500 × 500 mm travels and a spindle up to 36,000 rpm, on a 2000 × 2300 mm footprint. For aluminium, steel, brass and plastics. Designed and built in Italy.
Request information
A 5-axis machining centre that fits in your workshop: a twin-rotary head, roller guides and optical scales on a damping frame, for precise parts in a single set-up.
For SMEs that want to machine 5-axis parts in house without the space of a large machining centre: aluminium components, mould parts, brass and zamak parts, engineering plastics. Roughing and finishing of 3D surfaces, drilling, boring, tapping and interpolated threading.
We design and build CNC machining centres and 3D printers in Italy.
Part loading and handling, designed for your production.
Training on the machine and the control, at your site or remotely.
When a Satres machine stops we respond the same day. One-year warranty, extendable.

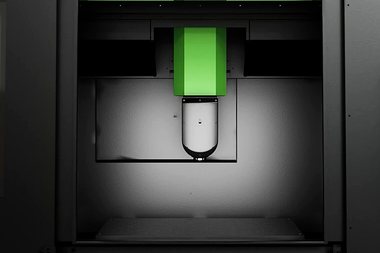

Three linear axes with 1000 × 500 × 500 mm travels and a twin-rotary head that tilts and rotates the tool: the part is machined on several sides without unclamping it.
Aluminium and light alloys, steel, brass and zamak, engineering plastics. With its high-speed spindle it performs best on aluminium and plastics.
2000 × 2300 mm footprint and 2600 mm height with the base; it weighs 4500 kg. 380 V power supply, 10-12 kW installed power.
Delectron, with a 17" touch-screen interface and assisted programming. Heidenhain or Siemens as an option.
Automatic 12-position tool changer, ISO BT30 taper (HSK A40, HSK E40, HSK E32, ISO 30 as options).
Yes: custom-designed loaders and automatic magazines, to run even unattended.
Training takes one or two days. When a Satres machine stops we respond the same day. One-year warranty, extendable. Training and service.
The price depends on the configuration: ask us for a quote. We reply within one working day.
Machine the part on several sides in a single set-up, undercuts included: fewer re-clampings and fewer positioning errors.

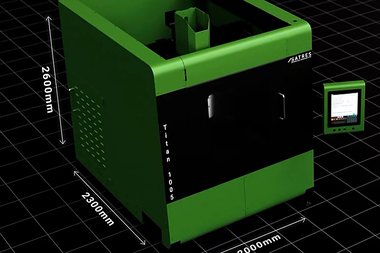

2000 × 2300 mm footprint and 2600 mm high: it fits in your workshop.
X, Y, Z travels of 1000 × 500 × 500 mm: large parts on a compact machine.

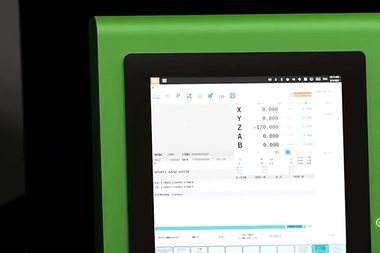

Assisted programming. Delectron CNC; Heidenhain or Siemens as an option.
It absorbs vibrations: better surface finish.
Roller guides on all axes and 1 µm optical scales (0.5 µm as an option), for accuracy and repeatability.
5.5 kW electrospindle at 24,000 rpm (up to 11 kW and 36,000 rpm as an option), automatic 12-position tool changer, ISO BT30 taper.
Loaders and automatic magazines to run even unattended.
Three examples of machining done with Titan 1005.
Stainless steel: drilling and engraving.
Aluminium 7075: Ø 18 mm interpolated bore with 0/+0.01 mm tolerance and a 20 mm slot with 0/+0.02 mm tolerance.
Brass and zamak: milling, drilling, engraving and tapping. With tilting vices and loaders, also for small batches.
The numeric control is specifically designed for Titan 1005, the software is focused on the 17inch touch screen interface limiting the physical buttons only to the useful commands. It adapts to every automatic necessity of the industrial field, removing the PLC from the machine cabinet.
| Working Area | Axis X | 1000 mm |
| Axis Y | 500 mm | |
| Axis Z | 500 mm | |
| Spindle Line | Spindle speed | 24.000 spindle / min (36.000 Option) |
| Spindle power | 5,5 kW (up to 11 kW as an option) | |
| Spindle type | Electro spindle | |
| Spindle cone | ISO BT30 (Option HSK A40, HSK E40, HSK E32, ISO 30 ) | |
| Change Tools | 12 Positions | |
| Spindle taper | Pneumatic tool change | |
| Automatic tool change | ||
| Feeds | Rapid feed | 20.000 mm/min |
| Working feed | 12.000 mm/min | |
| General Data | Total installed power | 10 – 12 kW |
| Weight | 4500 kg | |
| Power supply | 380 V | |
| Footprint | 2000 mm X 2300 mm | |
| Machine Height (including base) | 2600 mm | |
| Standard accessories | Numeric Control | Delectron (Option: Heidenhain, Siemens) |
| Electronic leaflet | ||
| Touch screen operator interface, assisted programming | ||
| Tank for collecting chips | ||
| Guides | Roller on all axes | |
| Optical Scales | 1um (0.5um Option) | |
For all our machines, it’s possible to develop Customized Automation for the part loading and handling part, pallet handling and other customized and unique solutions.
Find howTell us the material, size and quantity: we reply within one working day with information and a quote.
